Measuring bread machine baking pan temperature
Spring is here... soon it will be too warm to use the large indoor oven. It's the season for min-ovens (MO) and bread machines (BM) to be used more frequently, often set up out on the porch.
Over the last year or so I've tested dozens of BM's, looking for the ones that do the best job at mixing/kneading, fermenting/proofing, and baking. This thread is about the baking part.
My tests revealed that most BM's are pretty ho-hum bakers, with maximum baking temps in the 255-300ºF range. This is OK for soft crusts and spongy crumbs, i.e. sandwich bread. But most bread recipes call for much higher temps than that.
Communicating with several manufacturers (most notably Zojirushi, Panasonic, and Saki), I learned that the temps that matter are not the air temps inside the oven chamber; it's the baking pan temperature. That's what they design for.
So how best to measure that? It's easy to imagine an elaborate, automated setup with contact probes and computerized logging to do it. But we don't have to go there. I am getting excellent results (i.e. results that match the manufacturer specs) using an infrared thermometer. More on that as we go.
So, what exactly are we seeing when we measure the baking pan temp? We're seeing how the BM's computer senses the temp and controls the heater elements to get the temps they want. The primary technique used for controlling the temperature is changing the on/off cycle times (aka "duty cycle") of the heater element. More time on than off = hotter.
To start things off, we'll look at one of the popular Zojirushi dual paddle breadmakers. Well-built and very versatile, they are probably the most highly-regarded "high-end" BM out there. I've tested all models prior to the "Virtuoso" (which has a 2nd heater in the lid), and they're pretty much identical baking-wise. Let's see how they do as bakers. The unit I'll test is the BB-CEC20, aka "Home Bakery Supreme", a classic that is still being made and sold today.

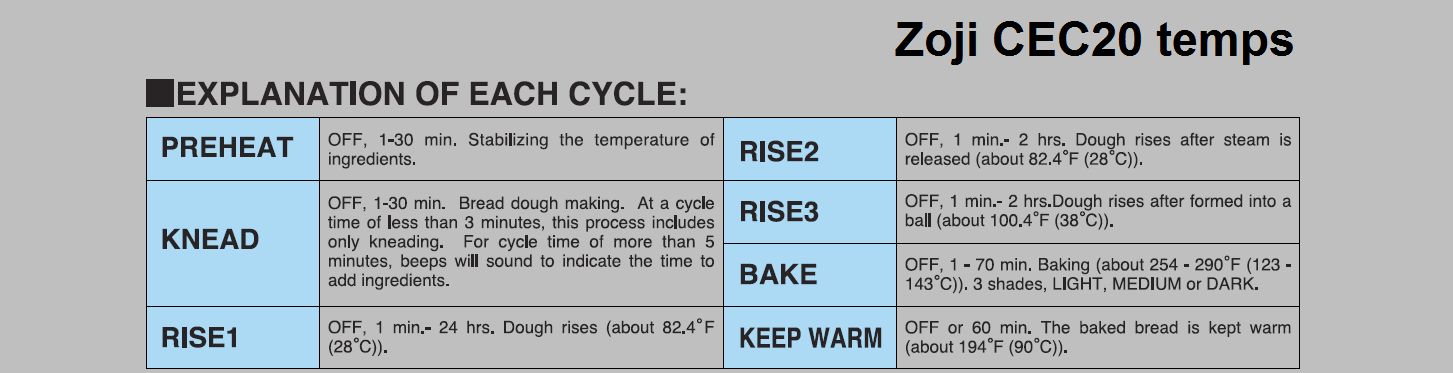

Zoji is one of the few companies who give pretty accurate time and temp data for their machines' cycles. For the bake cycle, the temp range is 254º (for Light crust) to 290º (for Dark crust). Since we're looking for its maximum baking temp, I'll use Dark mode, and 290ºF is the number to look for.

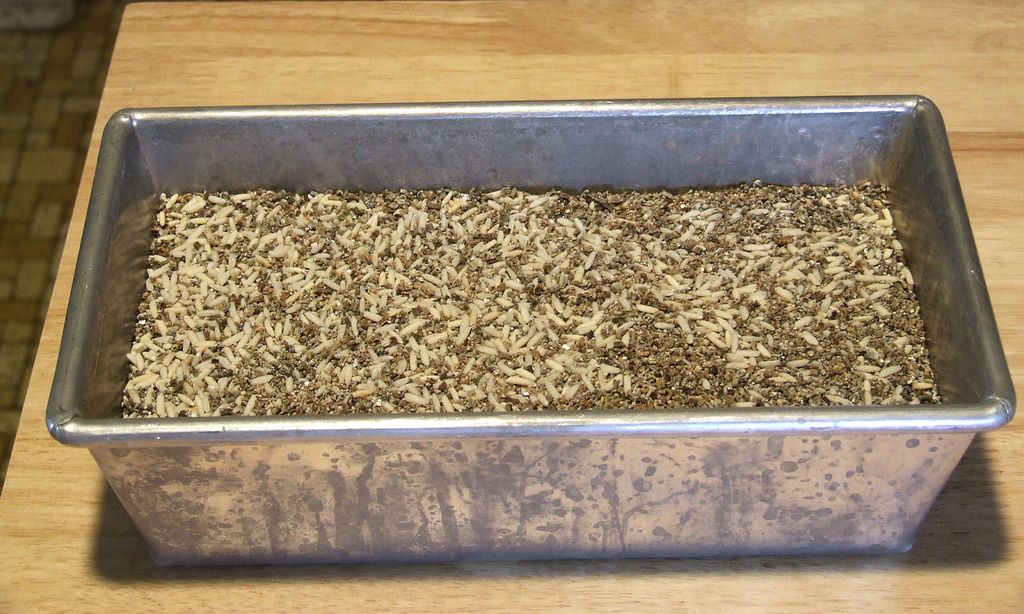

I've done this test with the stock pan several times in the past. But one of the cool things about the Zo is how easily it accommodates other pans, and Zo users frequently use them in their bakes. So I'll try that this time. The stock pan is aluminum so I chose a standard 9"x5" pan, also made of aluminum. Its weight is about half of the standard pan, so it should warm up more quickly. To simulate the size and mass of the dough in the pan, I used a mix of vermiculite and rice.

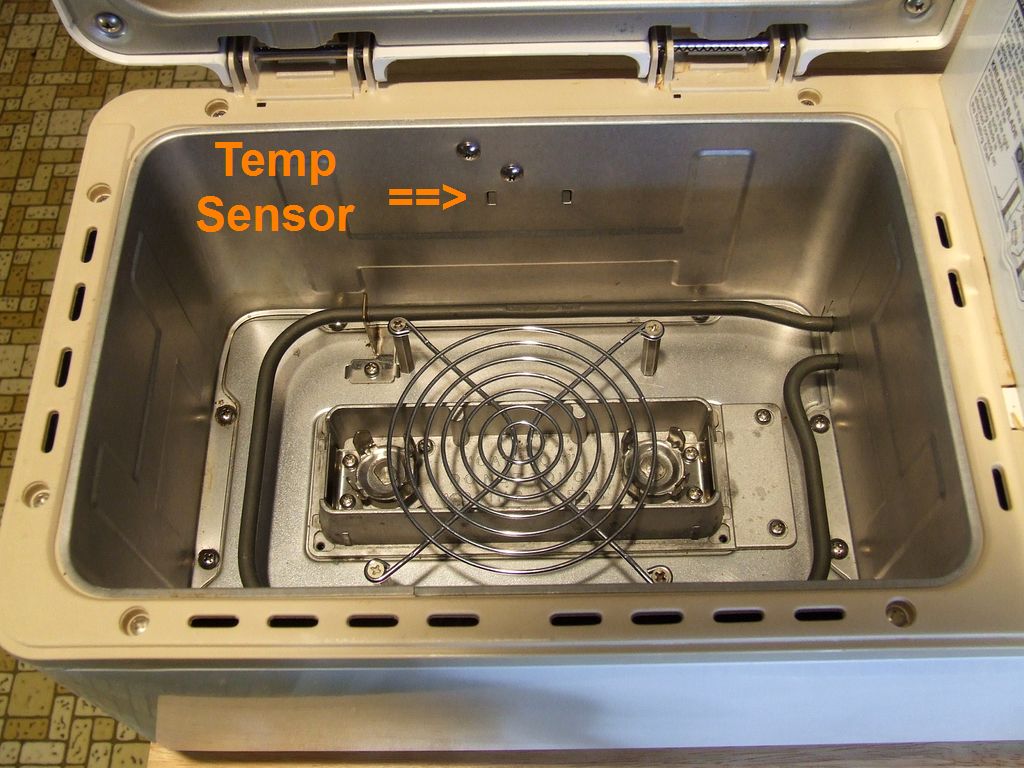

Here is the oven chamber of the CEC20. I made a trivet to raise the pan bottom to the same height as the standard pan. Note that the heater element enters on the right and wraps around the bottom perimeter. Also note the location of the temperature sensor on the back wall.

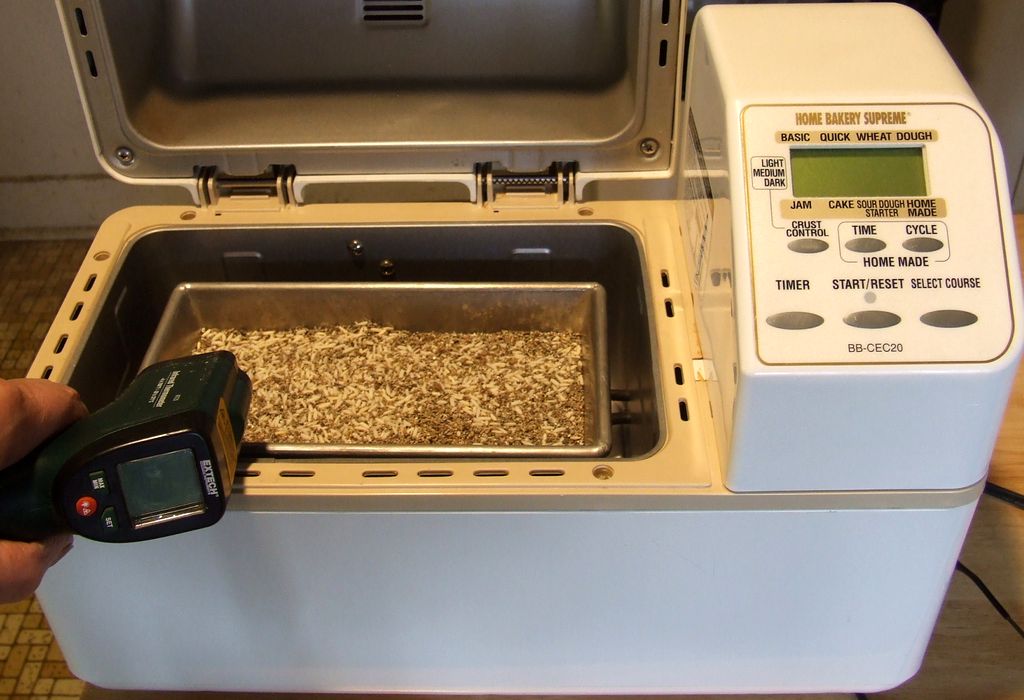

Here's a pic of the setup, showing where to place the infrared temp gun when measuring. Place it at the opposite end of where the heater elements enter the chamber. It needs to point at, and be perpendicular to, an exposed part of the pan. So don't do this with a full-size loaf; leave an inch or so at the top to measure. Oh, and DON'T do it with the lid wide open!! To minimize heat loss, only open it enough to get the gun in and take a measurement. Quick in and out... takes 4-5 seconds max.
Experience shows that 45 minutes is a long enough bake to see the computer's temperature control action. So this is a 45-minute dark mode bake. The list shows the pan temperature at the time remaining, in 5-minute intervals.
:45 Dark bake
:40 145º
:35 199º
:30 216º
:25 248º
:20 262º
:15 275º
:10 291º
:05 298º
:01 293º
The Zo is a very conservative baker and heats up slowly, even with the lighter-weight pan. It took 35 minutes for it to reach it's 290º maximum temp and settle in there. The heater element cycles on and off from the very start, and is never on for longer than about 30 seconds at a time. After about 15 minutes, it settles into "8 seconds on, 22 seconds off", or a 36% duty cycle. Even with a 700-watt element, this is very conservative heater action.
This measurement technique is easy to do and plenty accurate enough to assess the baking behavior of bread makers. In coming installments we'll see how some other machines bake, and maybe find ways to "trick" the computer into letting them bake hotter.
